Agentic workflows

Workflows turn a chat's agents into a pipeline: a set of stages wired into a DAG, where each stage is either an agent turn or a human approval gate. Stages with no unmet dependencies run in parallel; gates pause the run until enough people approve.

Everything a workflow produces lives in the chat itself — stage prompts and replies are ordinary messages, gates are ordinary proposals in the Review pane — and the workflow definitions and run records sync end-to-end encrypted with the workspace, so teammates watch a run progress live and can vote its gates from their own devices.

Presets

Open the Workflows pane in the right rail and add either preset — both are plain definitions you can edit afterwards:

• Review gate — one agent implements your request, a second critiques the result, then a gate holds the run until you approve. Rejecting the gate sends the work back to the implementation stage for another pass (bounded — three rejections halt the run).
• Fan-out + vote — three agents attempt the task independently and in parallel; a judge stage compares the results and declares a winner.

Presets run on the chat's Primary Runtime out of the box; edit a stage to pin it to any workspace agent instead (a local Ollama triage stage feeding a Claude implementation stage is the classic mix).

The DAG editor

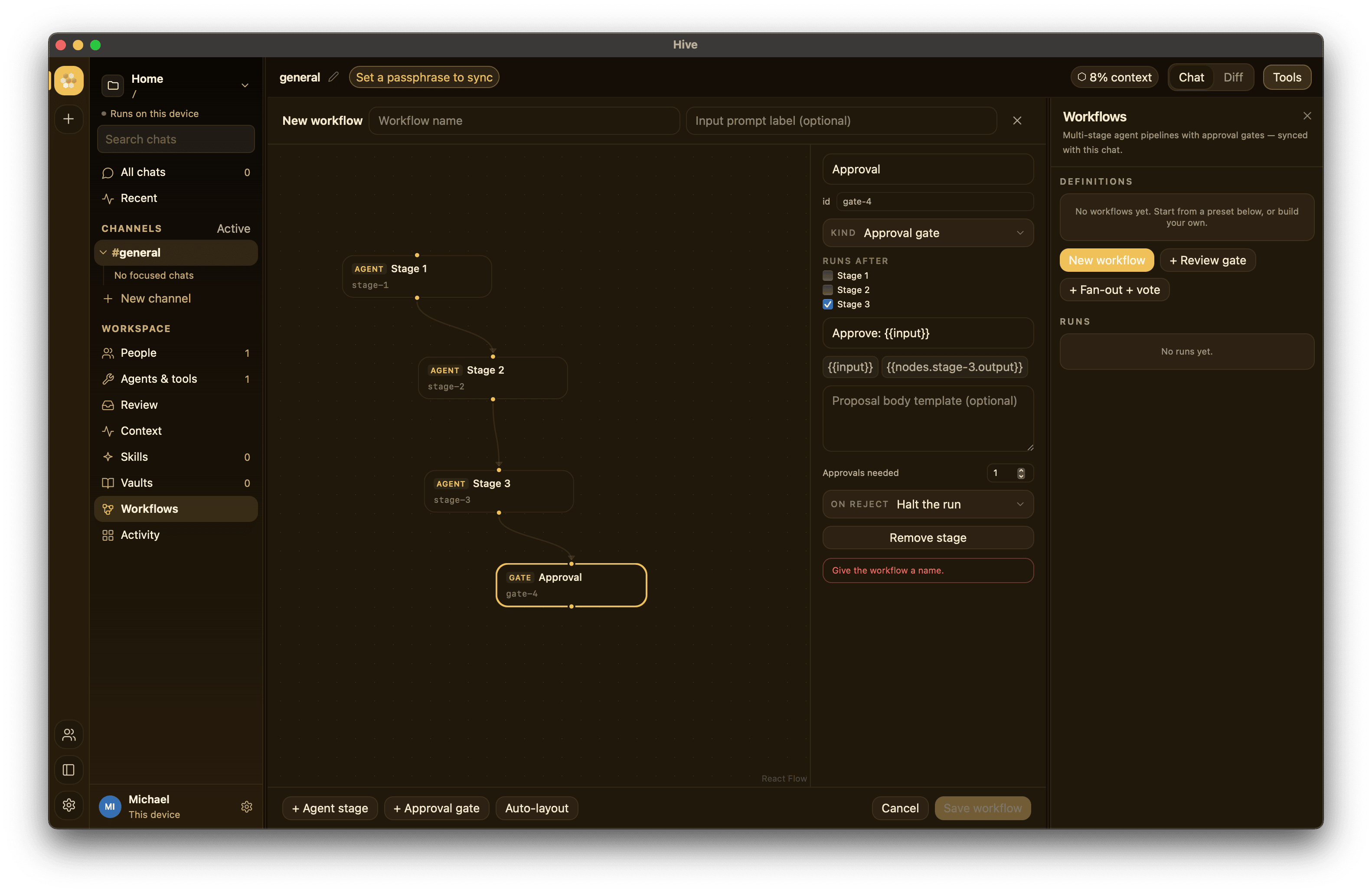

New workflow (or Edit on any definition) opens the visual editor in the main canvas — the same area the Diff view uses — with the graph on the left and a stage inspector on the right:

• The canvas is the DAG. Execution flows top to bottom. Drag stages anywhere (positions are saved with the definition and sync with it); drag from a stage's bottom handle to another's top handle to add a dependency edge; select an edge and press Delete to remove it. Pan and zoom freely; Auto-layout rearranges everything by dependency depth.
• The inspector edits the selected stage: name, a stable id (what templates reference), kind, and a Runs after list — the checkboxes and the canvas edges are two views of the same dependencies.
• Agent stages pick a responder (Primary Runtime or any workspace agent) and a prompt template. {{input}} interpolates the run input; {{nodes.<id>.output}} interpolates the full output of an upstream stage — one-click chips above the prompt insert them for you.
• Gate stages create a proposal when reached: title/body templates, a required-approval count (quorum), and a rejection policy — halt the run, or route back to an earlier stage and retry.

The editor validates as you type (cycles, dangling references, template refs that don't point upstream) and the backend re-validates on save. A dependency edge without a {{nodes.<id>.output}} reference is still meaningful — it's pure ordering: gates have no output at all, stages that both edit the working tree need serializing, and a cheap check can short-circuit an expensive stage (a failed dependency skips everything downstream).

Agents can build workflows

Ask any agent in the chat — "build me a workflow that triages new issues, drafts fixes, and holds them for my approval" — and it can author one by ending its reply with a [[workflow: {…}]] directive. This works on every runtime (the claude CLI, aider, pi, local Ollama models), because it's plain text in the reply, not a tool call. Hive validates the definition with the same rules as the editor, saves it to the chat, and posts a note; a rejected attempt posts the reason instead.

The directive an agent emits looks like this:

[[workflow: {
  "name": "Bugfix with review",
  "inputLabel": "Which bug?",
  "stages": [
    {"id": "repro",  "prompt": "Reproduce and diagnose: {{input}}"},
    {"id": "fix",    "agent": "Coder",
     "prompt": "Fix the bug given this diagnosis:\n{{nodes.repro.output}}",
     "after": ["repro"]},
    {"id": "review", "kind": "gate", "title": "Ship fix for: {{input}}",
     "body": "{{nodes.fix.output}}", "approvals": 1,
     "onReject": {"retryFrom": "fix"}, "after": ["fix"]}
  ]
}]]

Stages address agents by their roster name (omit agent for the Primary Runtime), after declares dependencies, and onReject is "halt" or {"retryFrom": "<stage id>"}. Agent-authored definitions are inert like any other: they appear in the Workflows pane (and open in the DAG editor) but only a human can run them. Agents get planning authority, never execution authority.

Recipes

Some shapes that work well — build them in the editor, or just describe them to an agent and let it author the definition:

Cost-tiered fixing. A free local model does the wide, cheap work; the expensive frontier model only runs on what survives.

Stage	Kind	Runs after	Notes
triage	agent (local Ollama)	—	"Rank these failures by likely root cause: {{input}}"
fix	agent (Claude)	triage	Works from {{nodes.triage.output}}
ship	gate	fix	1 approval, reject retries fix

Cross-vendor adversarial review. The reviewer is a different model family than the author, so they don't share blind spots — something single-vendor tools can't express.

Stage	Kind	Runs after	Notes
draft	agent (Claude)	—	Implements {{input}}
attack	agent (another vendor/model)	draft	"Find what's wrong with: {{nodes.draft.output}}. Be adversarial."
repair	agent (Claude)	attack	Fixes what the attack found
gate	gate	repair	Human ships it

Spec fan-out with a team gate. Three independent drafts, a judge, and a quorum of two teammates before anything counts as decided — run it in a shared workspace and both approvals can come from different devices.

Stage	Kind	Runs after	Notes
draft-1..3	agents	—	Parallel: "Propose an API design (variant N): {{input}}"
judge	agent	all three	Compares, declares a winner
adopt	gate	judge	approvals: 2 — real team sign-off

Docs pipeline. Draft → fact-check against the vaults loaded in the session → editorial gate; rejection reroutes to the draft stage with the checker's notes already in the transcript.

Running

Hit Run, give it an input, and watch the run card: one chip per stage, colored by state, with the output preview on hover. Stage turns stream into the transcript under a [Workflow · name → stage] header. Awaiting gates show approve/reject right on the card (they're also in the Review pane). Cancel stops a run between stages; Resume restarts a run that was interrupted (say, by an app restart) — finished stages keep their outputs.

Current limits

• A run executes entirely on the device that starts it, so every stage's agent must be runnable there (agents owned by other members are rejected at start). Teammates still see the run live and vote gates.
• Definitions belong to the chat they're created in.
• Parallel stages share the chat transcript, so siblings can see each other's prompts in context. The presets are written with this in mind.
